RFID Helps Automate Paper Products Manufacturing

WEPA is using technology from Vilant Systems, as well as RFID-enabled cardboard reel cores, to identify each jumbo reel of paper used to make toilet paper, paper towels and other products.
Published: November 17, 2016

WEPA, a German manufacturer of bathroom tissue and other paper products, is employing passive ultrahigh-frequency (UHF) RFID tags to enable the automation of its manufacturing and reel transportation processes. The system is currently in use at the company’s Mainz facility, where 10-foot-tall tubes made of cardboard are wound with paper and are then transported to the warehouse, as well as to converting machines, by automated guided vehicles (AGVs). The RFID readers and software were provided by Finland-based technology company Vilant Systems, while RFID tags were incorporated by Sonoco Alcore into its Intellicore paper cores. The software, known as Vilant Visibility Manager Server (VWM), captures and manages RFID read data and integrates that information with WEPA’s AGV software, warehouse-management software and enterprise resource planning (ERP) software.

Since the RFID system was installed in October 2015, it has enabled the company’s automated system to identify each reel of paper it produces, and to create a record of how and when that paper was used, by reading the unique identifier encoded on a particular core’s embedded UHF RFID tag, as well as writing data—such as the type of paper and the date and time of each processing event—to that tag. This data enables the solution to automatically link each product with the reel number from which the paper originated, and also creates a record of what processes occurred with paper from each particular reel.

A core is attached to the winding machine, and paper is then rolled onto it.

Once the paper is consumed to make packaged paper products, the cores can be reused for other reels. The system also tracks how often each core has been used, so that it can be recycled upon reaching the end of its lifespan.

WEPA’s Jan Frenzer

To create one of its jumbo paper reels, WEPA starts with an Intellicore core, which measures approximately 40 centimeters (15.7 inches) in diameter, and uses a machine to wind a continuous 10-foot-wide sheet of paper around the core until it creates a reel 2.3 meters (7.5 feet) in diameter. Originally, says Jan Frenzer, WEPA’s central process engineer, once a jumbo reel of paper was produced, a bar-code label was attached to it, after which it was transported to the warehouse by a manually operated forklift, where it was stored until needed. The reel’s ID number and any transactions related to its movements were manually typed into the ERP system. If the reel’s bar-code label was damaged or dislodged during transportation or storage, there was no way to identify that reel and the type of paper it contained, which could render the reel non-useable.

WEPA wanted to automate its system in order to boost efficiency, reduce labor costs and prevent any errors during the processing of paper products. Errors could consist of using the wrong reel of paper for a particular product, for example. The new automated process includes AGVs instead of manually operated lifters; tissue, layer, rewinding and packaging machinery that conducts each process automatically; and an RFID tag embedded in the cardboard core to maintain a digital record of what is taking place. A total of 16 Impinj fixed readers are installed in the processing machines, as well as at the gates through which the AGVs travel, in order to identify when reels enter or leave the warehouse.

First, a core is attached to the winding machine, and paper is then rolled onto it. The machine’s built-in RFID reader captures the tag ID and writes data onto the tag indicating that the winding event has taken place, along with the grade of paper and the time and date at which this occurred. That information is also stored in the VWM software.

The reel is then transported to the warehouse by an AGV rather than a human forklift driver. As it enters the warehouse, the AGV passes an RFID portal, thereby creating a record of that event in the software. The AGV then places the reel at an assigned storage location. “We decided against any reader on the AGV,” Frenzer explains, “but instead [installed] stationary readers at multiple gates and in the machines to keep communication hardware (such as Wi-Fi or cellular connections) as simple as possible.”

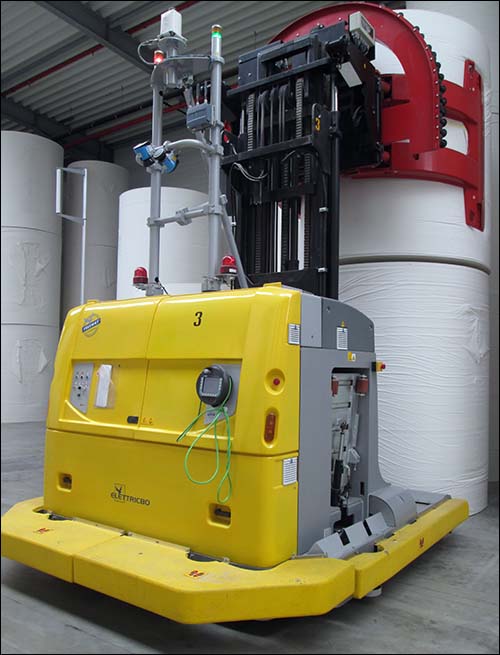

Automated guided vehicles carry paper rolls around the warehouse.

Once the reel is ready to be used in the manufacturing of paper products, an AGV picks it up at its assigned location and transports it to the unwinding machine. By reading the tag ID, the machine can thus confirm that the right paper is being used for that specific order.

The unwound paper is then cut and embossed before being rolled into smaller rolls to be packaged and sent to stores. The RFID reader at the unwinding station writes data related to this event to the tag, and stores it in the software. The reel can then be reused until all of its paper is consumed, and all information is stored in the core tag. Once empty, the core can be reused and the tag’s memory is cleared of all data related to the previous events. The software, however, stores this information so that the company can keep a history of usage for each core. When the core eventually reaches the end of its lifespan, after being used a specified number of times, the software can alert managers that it must be replaced.

The key advantage to having the RFID technology in place, Frenzer says, is that it enables the automated transportation of the reel from the machine where it was created to its storage location within the warehouse, later when it is picked up at the warehouse and moved to the unwinding machine, and finally when it is returned to storage. However, having the identifier built into the reel core has another practical purpose. “This is a reliable means of identification,” he states, “since damage to the top layers of the paper does not harm identifiability of the jumbo reel.”
